Description
Specifications:
Proximal Connector : Pediatric Clip.
Compatibility: TruSat, TruSat ED, TruSat TD.
Accuracy: SpO2)(±1S.D.); 90-100%±2 digits, 70-89% ± 3 digits, 0-69% unspecified); Pulse Rate: ±2 bpm.
Spo2 Range: 50-100%.
Spo2 Accuracy: 85-100%: ±1%; 70-84%: ±2%; 50-69%: ±3%.
Pulse Rate Range: 25-250BPM.
Pulse Rate Accuracy: ±2 BPM.
Humidity: Operating/Storage/Transportation 0% to 80% non-condensing Altitude Hyperbaric Pressure 86kPa - 106kPa.
Storage/Transportation: 23℉-104℉.Operating Temperature: 32℉~+104℉
Certifications: FDA, CE, ISO EN , ISO13485, TUV, RoHS Compliant.
Cable Color: Gray.
Cable Diameter: 4 mm.
Cable Length: 9.8 ft.
Cable Material: TPU Jacket.
Category: SpO2.
Distal Connector: Male, 9-pin TruSignal Connector.
Patient Size: Pediatric (33-88lbs)
SpO2 Technology: Datex TruSignal.
Warranty: 12 months.
Weight: 0.6lb.
Packaging Type: Bag.

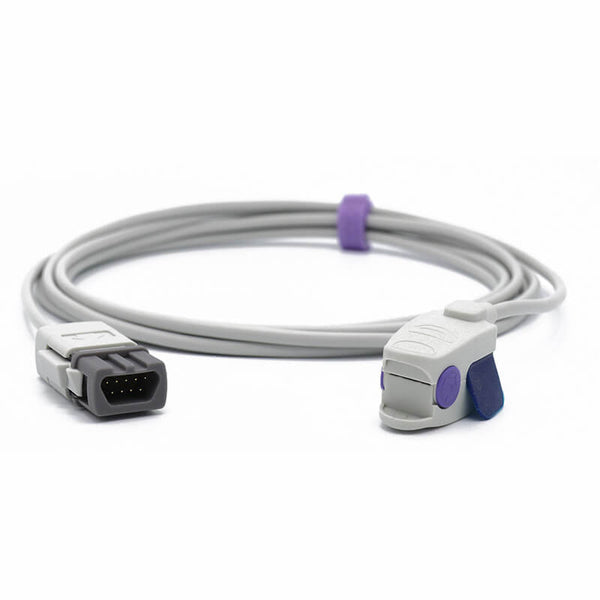

Packaging Included: 1 x Pediatric Clip Spo2 Sensor for Ohmeda Trusat.
Specifications:
Proximal Connector : Pediatric Clip.
Compatibility: TruSat, TruSat ED, TruSat TD.
Accuracy: SpO2)(±1S.D.); 90-100%±2 digits, 70-89% ± 3 digits, 0-69% unspecified); Pulse Rate: ±2 bpm.
Spo2 Range: 50-100%.
Spo2 Accuracy: 85-100%: ±1%; 70-84%: ±2%; 50-69%: ±3%.
Pulse Rate Range: 25-250BPM.
Pulse Rate Accuracy: ±2 BPM.
Humidity: Operating/Storage/Transportation 0% to 80% non-condensing Altitude Hyperbaric Pressure 86kPa - 106kPa.
Storage/Transportation: 23℉-104℉.Operating Temperature: 32℉~+104℉
Certifications: FDA, CE, ISO EN , ISO13485, TUV, RoHS Compliant.
Cable Color: Gray.
Cable Diameter: 4 mm.
Cable Length: 9.8 ft.
Cable Material: TPU Jacket.
Category: SpO2.
Distal Connector: Male, 9-pin TruSignal Connector.
Patient Size: Pediatric (33-88lbs)
SpO2 Technology: Datex TruSignal.
Warranty: 12 months.
Weight: 0.6lb.
Packaging Type: Bag.
Packaging Included: 1 x Pediatric Clip Spo2 Sensor for Ohmeda Trusat.
