Description
Specifications:
Proximal Connector : Multi-Y.
Compatibility: Datex Ohmeda 3700, 3710, 3740, 3770, 3775, 37xx Series, 3800, 3900, 3900P, 4700, 5250 RGM, 5250 respiratory gas monitors
Accuracy: SpO2)(±1S.D.); 90-100%±2 digits, 70-89% ± 3 digits, 0-69% unspecified); Pulse Rate: ±2 bpm .
Spo2 Range: 50-100% .
Spo2 Accuracy: 85-100%: ±1%; 70-84%: ±2%; 50-69%: ±3%.
Pulse Rate Range: 25-250BPM.
Pulse Rate Accuracy: ±2 BPM.
Humidity: Operating/Storage/Transportation 0% to 80% non-condensing Altitude Hyperbaric Pressure 86kPa - 106kPa.
Storage/Transportation: 23℉-104℉.Operating Temperature: 32℉~+104℉
Certifications: FDA, CE, ISO EN , ISO13485, TUV, RoHS Compliant.
Cable Color: Gray.
Cable Diameter: 4 splitting to 2.5*2 mm.
Cable Length: 3.5 ft.
Cable Material: TPU Jacket.
Category: SpO2.

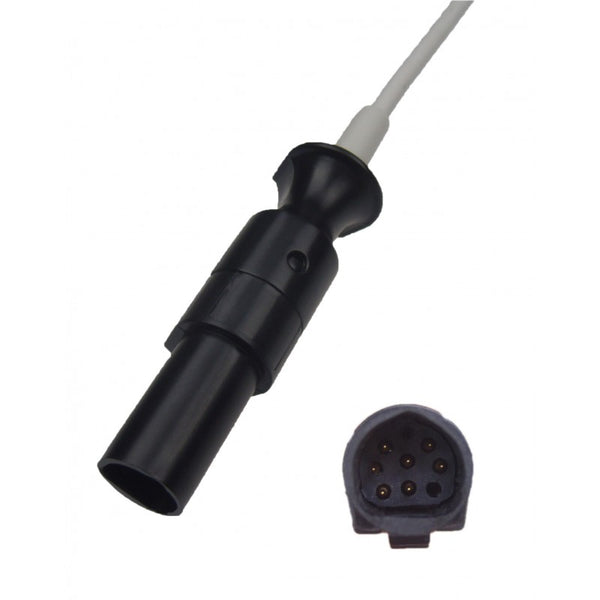

Distal Connector: Male 7-pin Hypertonix Connector.
Patient Size: All patient sizes
SpO2 Technology: Ohmeda.
Warranty: 12 months.
Weight: 0.4lb.
Packaging Type: Bag.

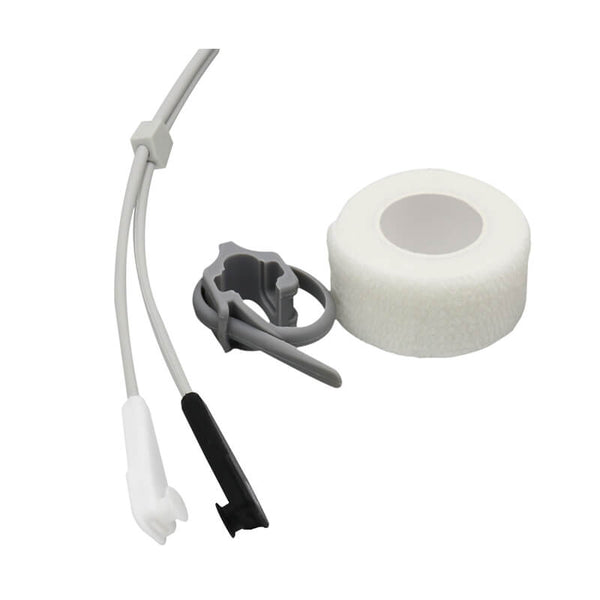

Packaging Included: 1 x Multi-Y Spo2 Sensor for Datex Ohmeda.
